ACT-F3
ACT-F3 is a highly integrated card processing module that integrates issuance, reading, and writing capabilities in a single unit. It enables efficient handling of both IC cards and RF cards, supporting full-cycle operations including personalization, encoding, and secure recycling.
Key features include:
Precision embossing for various card types
Automatic adjustment for cards of different thicknesses
High-capacity card recycling to meet demanding operational needs
High-strength, wear-resistant plastic card pathways
Multi-level sensor-based circuit protection
Optional PCSC-compliant reader module for enhanced compatibility
The ACT-F3 delivers reliable, secure, and scalable card processing performance for automated and self-service environments.
Recommend applications：

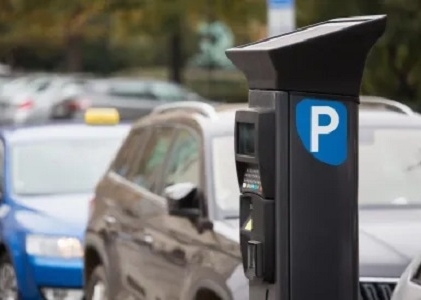

Parking lot management systems
Highway toll collection gates
Self-service payment and recharge kiosks
Self-service card vending terminals
Bank card management and issuance systems
Power and utility payment terminals
Other scenarios requiring high-volume card processing
Specification
| Model | ACT-F3 |
|---|---|
| Support Cade Size | 55mm*86mm, 0.2mm to 1.2mm thickness |
| Support Contact IC Card | ISO7816-2 |
| Support Contactless Card | ISO14443 |
| Interface | RS232, USB |
| Power Supply | DC 24V |
| Card Capacity | Capacity for 0.76mm thick non-embossed cards: 155 sheets |
| Recycle Bin Capacity | Standard card capacity: 25 sheets |
| Lifespan | Card issuance lifespan: 1,000,000 cycles. IC contact pin lifespan: 500,000 cycles |
| Temperature | Operating: 0 to 50℃, Storage:-10℃ to 60℃ |
| Weight | 1.6KG |
