Product / Card Reader

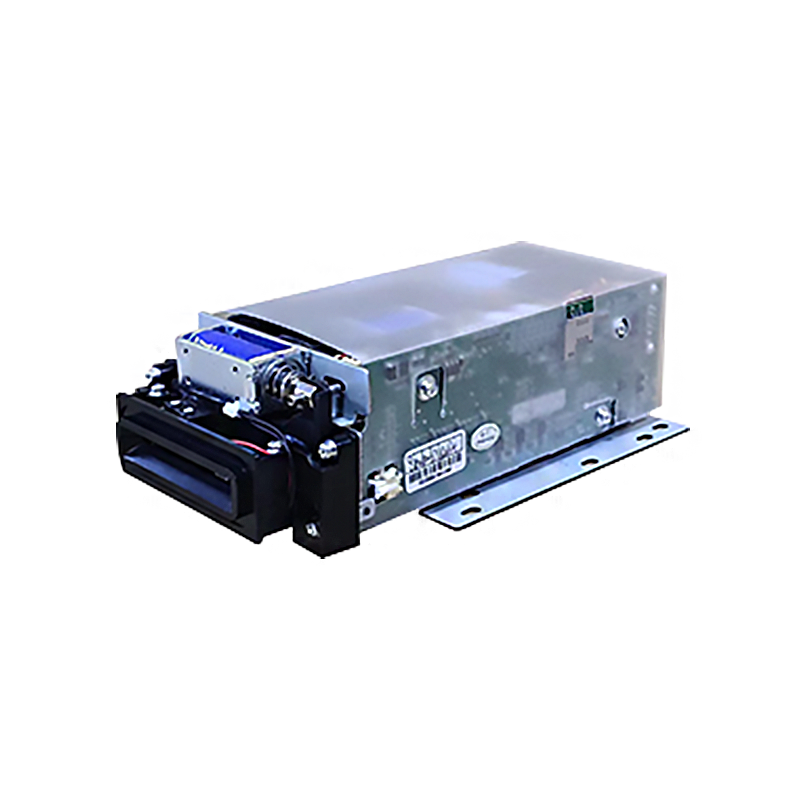

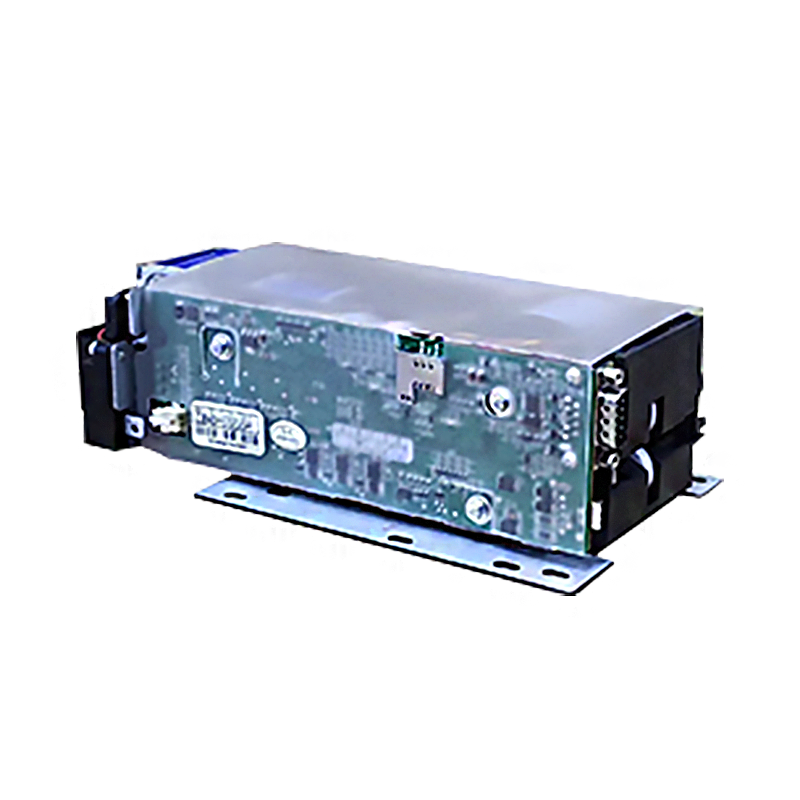

ACT-A6

ACT-A6 is a highly integrated, financially certified motorized card reader designed for secure and versatile identity authentication. It comprehensively supports three card technologies: magnetic stripe (ISO 7811), contact IC chips (ISO 7816, EMV compliant), and contactless cards (RFID, ISO 14443).

With exceptional card compatibility—even for bent or damaged cards—and intelligent security features such as forgotten card retrieval, timeout withdrawal, and power‑off ejection, it delivers reliable performance in critical environments. The reader is ideally suited for a wide range of high‑security self‑service and payment applications, including bank self‑service terminals (ATMs/CRS), high‑end POS systems, smart vending machines, government service kiosks, and hospital self‑payment stations.

Engineered to meet stringent requirements for security, reliability, and operational efficiency, ACT-A6 is a trusted solution for the financial, retail, healthcare, and public service sectors.

Recommend applications:

  • Payment terminal

  • Self-check out

  • Bank ATM

  • Access control

Specification

Model ACT-A6
Magnetic Strip Card ISO7810 and ISO781
Contact IC Card ISO7816-2
Contactless Card ISO14443
Interface RS232C
Power Supply DC 24V
Dimension 111.8mm*64.75mm*194.93mm
Temperature Operating: 0 to 70°C, Strorage:-10°C to 60°C
