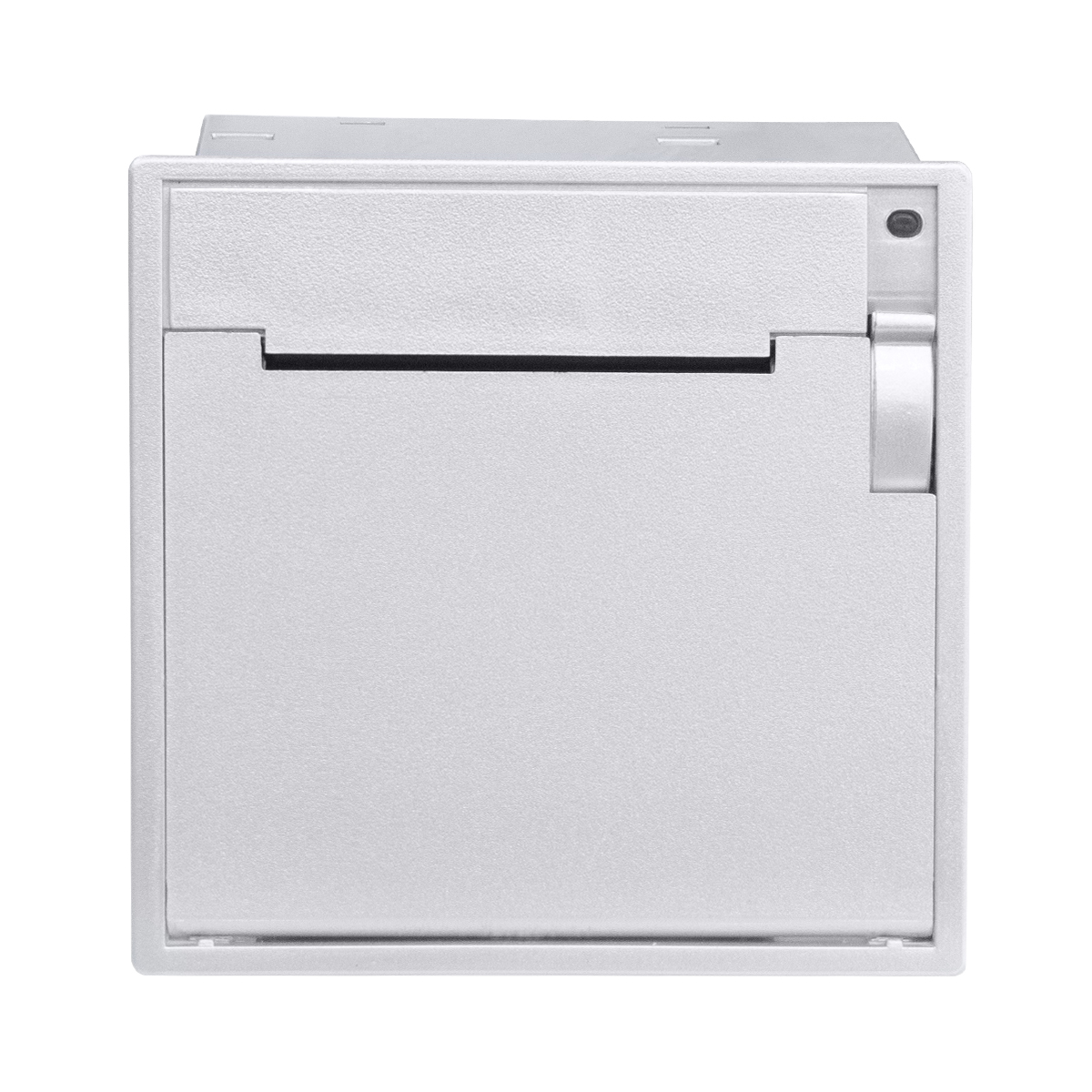

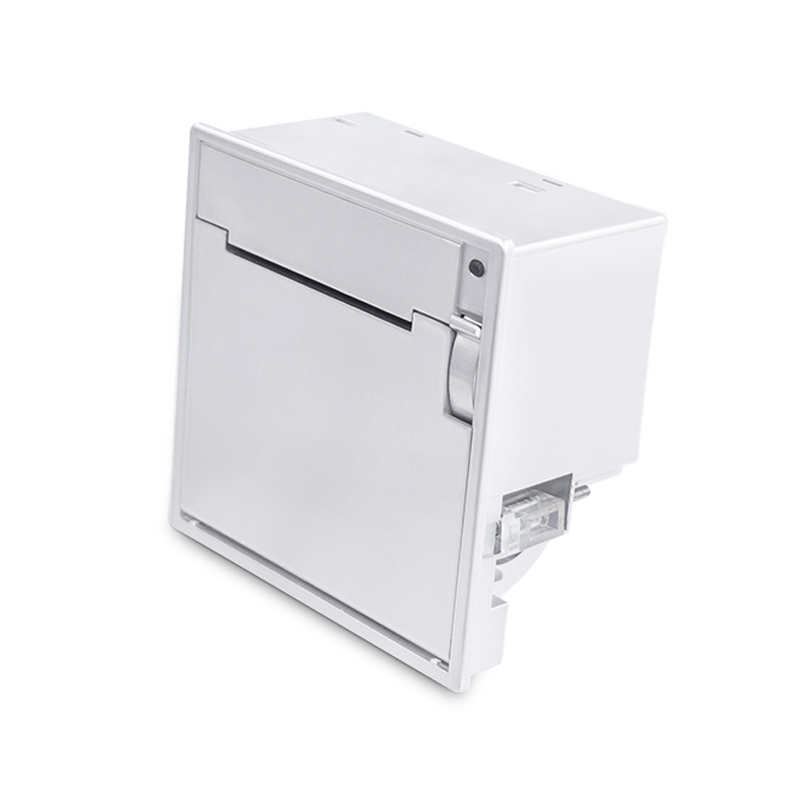

MS-FPT201K
The MS-FPT201K is a compact, high-performance embedded thermal printer engineered for seamless integration into a wide range of commercial and industrial equipment. It combines easy installation, low maintenance, and exceptional reliability with sharp, high-quality print output, making it suitable for continuous and demanding applications.
Equipped with intelligent paper-out detection, the printer effectively prevents paper jams and empty runs, enhancing operational stability. It fully supports high-speed, precise printing of 1D/2D barcodes and high-resolution graphics, meeting diverse labeling and receipt requirements.
Ideal for use in queuing systems, POS terminals, self-service kiosks, gaming machines, medical devices, and industrial control equipment, the MS-FPT201K delivers a dependable and efficient printing solution for environments where space, reliability, and print clarity are critical.
Specification
| Model | MS-FPT201K |
|---|---|
| Printing Method | Thermal printing |
| Resolution | 203dpi |
| Printing Speed | 100mm/s(max) |
| Printing Width | 48mm(max) |
| Paper Width | 58mm(max) |
| Paper Thickness | 56 to 105um |
| Print Head Life | 100KM |
| Cut Mode | Fully cut & partial cut |
| ASCII Font | 9*17 ; 12*24 dots |
| Chinese Font | 24*24 dots |
| Barcode | Full support |
| Power Supply | DC 12V to 24V |
| Interface | RS232, USB |
| Temperature | operating: -10℃ to 50℃, storage:-20℃ to 60℃ |
| Dimension | 100.2mm*55.8mm*99.85mm |
| Weight | 270g(without paper roll) |
