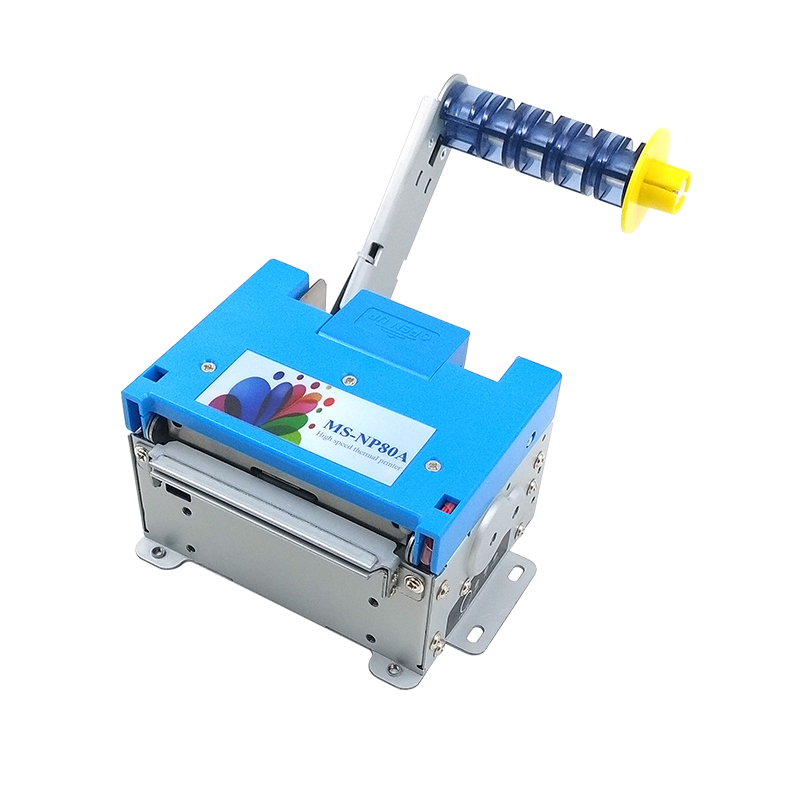

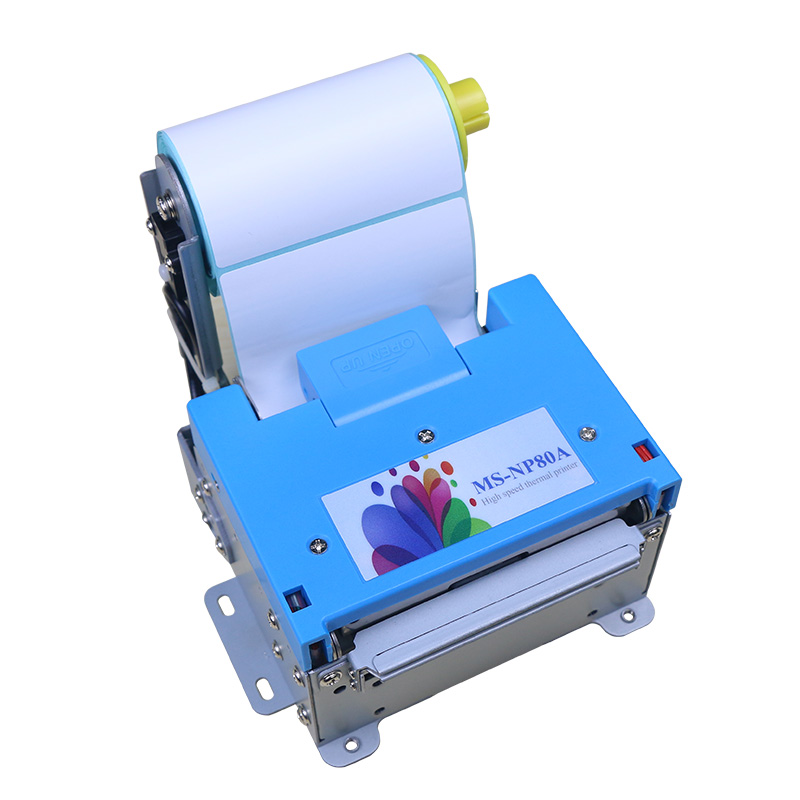

MS-NP80A
The MS-NP80A thermal printing module features a line thermal print head, delivering high-speed, low-noise operation with exceptional reliability and superior print quality. Capable of handling substantial paper cutting thicknesses, its compact and durable design ensures consistent performance in space-constrained applications.
Equipped with a dedicated engineering plastic paper outlet, the module simplifies installation and streamlines maintenance. It supports key functions such as automatic paper feeding and automatic cutting, enhancing operational efficiency in demanding environments.
Well-suited for point-of-sale (POS) systems, ticketing kiosks, queuing machines, and invoice printers, the MS-NP80A also provides reliable embedded printing for healthcare, logistics, retail, and industrial automation applications, offering a robust and versatile printing solution across diverse sectors.
Specification
| Model | MS-NP80A |
|---|---|
| Printing Method | Thermal printing |
| Dot per Line | 640dots |
| Resolution | 203dpi |
| Printing Speed | 250mm/s(max) |
| Printing Width | 80mm(max) |
| Paper Width | 60/80/82.5mm(optional) |
| Paper Thickness | 60 to 150um |
| Print Head Life | 100KM |
| Cut Mode | Fully cut & partial cut |
| ASCII Font | 9*17 ; 12*24 dots |
| Chinese Font | 24*24 dots |
| Barcode | Full support |
| Power Supply | DC 24V |
| Interface | RS232, USB |
| Temperature | operating: -10℃ to 50℃, storage:-20℃ to 70℃ |
| Dimension | 296mm*145mm*161.5mm |
| Weight | 1kg(without paper roll) |
