K-1141
K1141 is a compact, fanless industrial computer built on the Intel® Celeron® Processor J6412/J6413 platform, delivering excellent low-power performance and stable computing capabilities, making it ideally suited for continuous operation in demanding environments. Its compact chassis integrates a rich set of I/O interfaces, supports multi-display output and Gigabit Ethernet communication, and can be flexibly deployed in machine vision, industrial automation, intelligent gateway, and other application scenarios, providing highly reliable hardware support for edge computing.
Recommended Applications:
Machine Vision and Quality Inspection
Intelligent Edge Computing and AI Inference
Industrial Automation and Control
Intelligent Transportation and Vehicle Computing
Digital Signage and Interactive Terminals
Cybersecurity and Gateways
Specification
| CPU | Intel® Celeron® Processor J6412/J6413 |
|---|---|
| Memory | DDR4 max.32GB |
| Storage | SSD 128/256/512GB |
| OS Support | Win10/Win11/Unix/Linux |

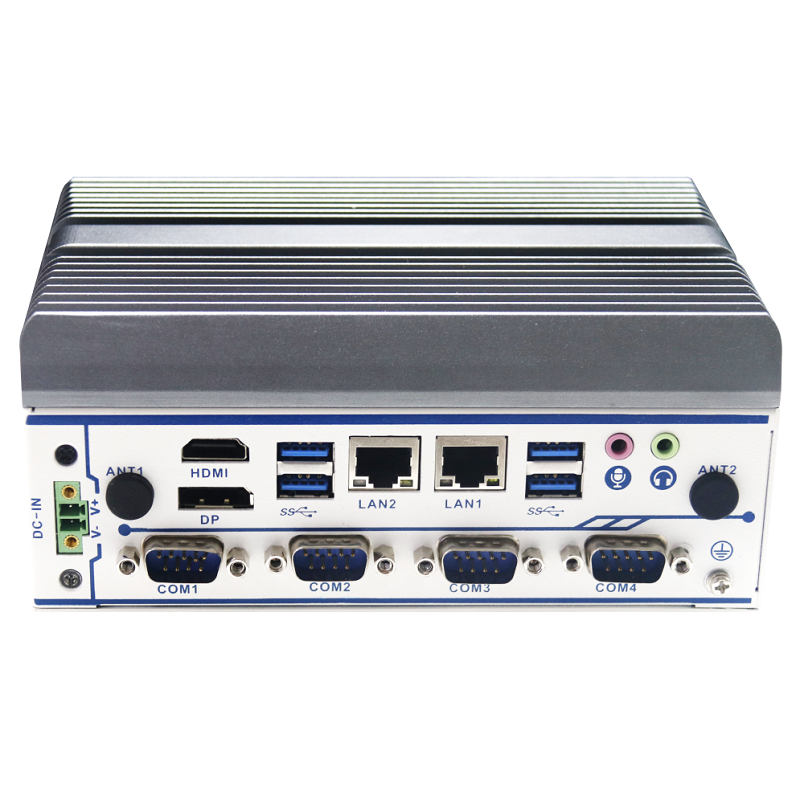

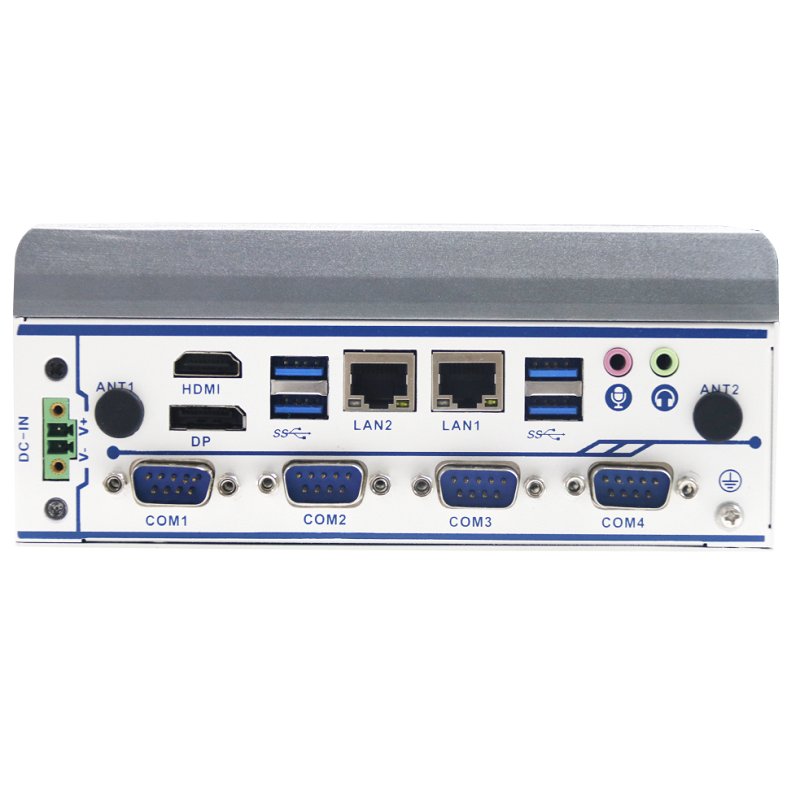

| I/O | 1*HDMI 2.0b, 1*DP1.4, 4*USB3.0, 6*COM, 2*GbE RJ-45 (Intel I210AT & I225-V), 1*LINE-OUT, 1*MIC-IN |
| PCIe Slot | 1*M.2 3042/52 B-Key(for 4G/5G), 1*M.2 2230 E-Key(for WiFi/BT) |
| Power Supply | DC 9V to 36V |
| Temperature | Operating: -20℃ to 60℃, storage: -40℃ to 80℃ |
| Dimension | 170mm(L)x112mm(W)x71.5mm(H) |
