M-2141

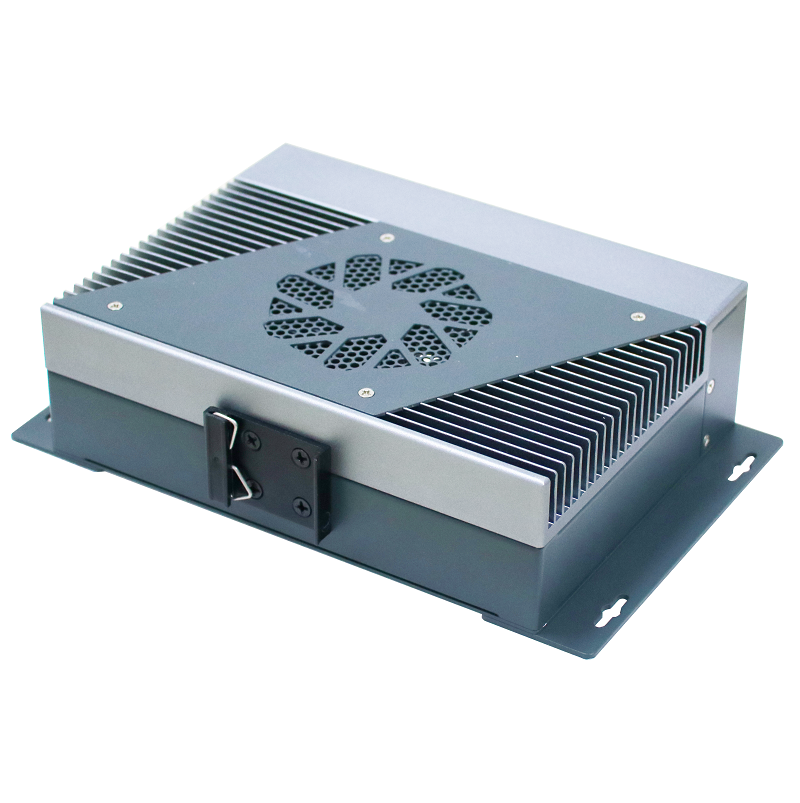

M2141 is a compact, high-performance industrial box PC powered by the Intel® Core™ Ultra 7 processor. It features a specially engineered cooling system that integrates an efficient heatsink with a high-performance fan, significantly enhancing thermal management while ensuring full internal dust protection. This enables the system to maintain stable, low-temperature operation even under continuous high-load computing, providing reliable support for 24/7 operation in demanding environments.
Constructed with an all-metal ruggedized enclosure, the M2141 offers rich I/O interfaces and flexible expansion capabilities. It is designed to excel in industrial AI applications such as machine vision, edge inference, automation control, and real-time data processing, making it an ideal solution for efficient and stable performance in harsh industrial settings.
Recommended Applications:
Machine Vision and Quality Inspection
Intelligent Edge Computing and AI Inference
Industrial Automation and Control
Intelligent Transportation and Vehicle Computing
Digital Signage and Interactive Terminals
Cybersecurity and Gateways
Specification
| CPU | Intel® Core™ Ultra 7 Processor 165H, Intel® Core™ Ultra 5 125U |
|---|---|
| Memory | DDR4 max.96GB |
| Storage | SSD 128/256/512GB |
| OS Support | Win10/Win11/Unix/Linux |

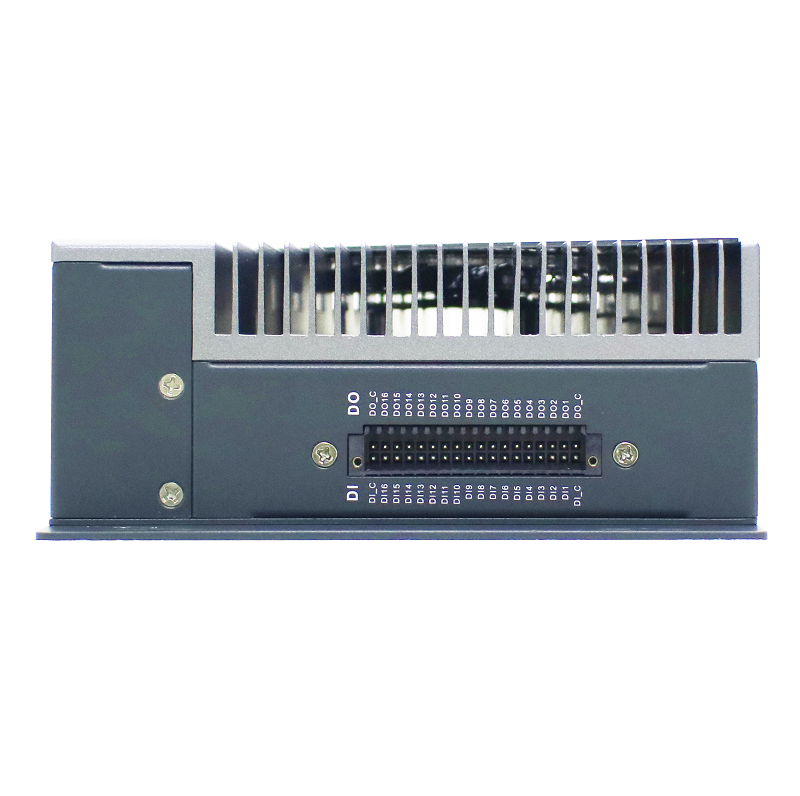

| I/O | 1*HDMI, 1*VGA, 4*USB3.0, 5*RJ45, 2*COM, 16*DI, 16*DO |
| PCIe Slot | 1*M.2 2230 E-Key for WIFI , 1*MINI-PCIE for 4G/WIFI |
| Power Supply | DC 9V to 36V |
| Temperature | Operating: -20℃ to 60℃, storage: -40℃ to 80℃ |
| Dimension | 200mm(L)x150mm(W)x72.2mm(H) |
