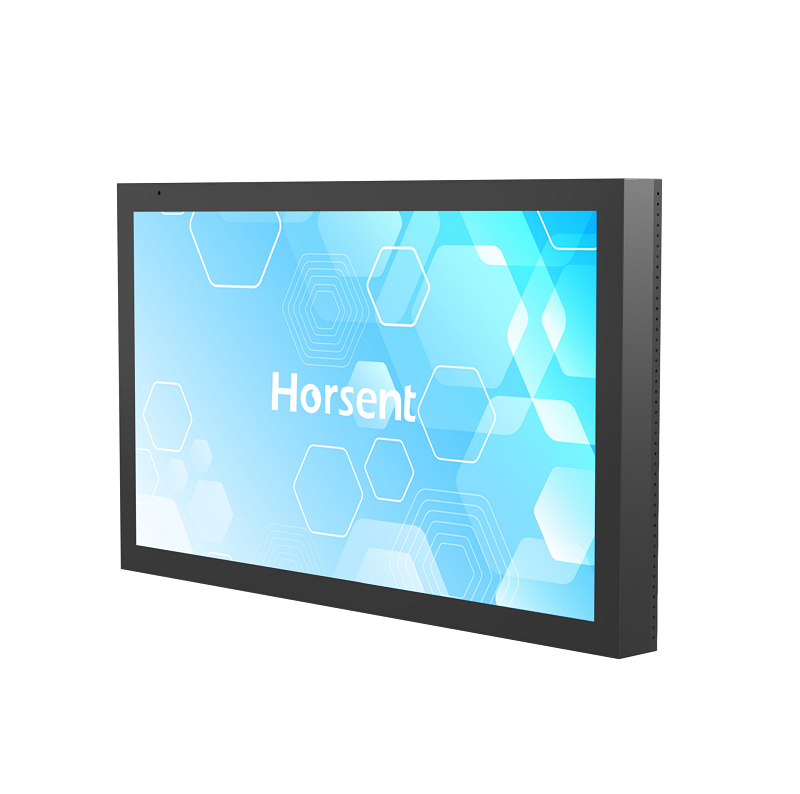

32” Outdoor Touchscreen Display
This industrial-grade high-brightness LCD display delivers up to 3000 nits of luminance and Full HD resolution, ensuring exceptional readability and image clarity even under direct sunlight. Featuring a wide viewing angle, optical bonding, and an advanced anti-glare coating, it provides outstanding sunlight-readable performance for critical outdoor and high-ambient-light environments.
Designed for durability, the display incorporates robust protection against UV and IR radiation, making it suitable for long-term use in demanding industrial, transportation, and outdoor settings. With responsive multi-touch PCAP technology, it enables intuitive user interaction, ideal for public information kiosks, self-service terminals, digital signage, and industrial control panels.
An integrated active thermal management system—supported by a built-in fan, ambient light sensor, and temperature sensor—ensures stable 24/7 operation across a wide range of environmental conditions, from sun-exposed parking areas to high-temperature factory floors. This combination of high brightness, environmental resilience, and reliable thermal control makes it a versatile display solution for applications where visibility, durability, and continuous operation are essential.
Recommended Applications:
Transportation Hubs
Digital Signage
Outdoor Retail
Industrial Automation
In-Vehicle Solutions
E-vehicle Charging Station
Specification
| Model | H3218PLO-UHA-20 |
|---|---|
| Size | 31.5” |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Pixel Pitch | 0.3637mm x 0.3637mm |
| Active Area | Horizontal: 698.40mm Vertical: 392.85mm |
| Native Resolution | 1920 x 1080 @ 60Hz |
| Response Time | 10ms |
| Colors | 16.7 million |
| Brightness | 3000nits (Typ.) 2550nits with PCAP |
| Contrast Ratio | 1200:1 |
| Viewing Angle(CR>10) | Horizontal: 178° (89°/89°) Vertical: 178° (89°/89°) |
| Touch Technology | PCAP |
| Cover Glass | 6mm Strengthened, Anti-Glare, IK10 |
| Coating | UV &IR Resistance, anti-glare |
| Transparency | 85% |
| Hardness | 7H |
| Touch Point | 10 points |
| Touch Response | ≤15 ms |
| Touch Cycles | Unlimited |
| Dimension | 763.8mm x 458.3mm x103.3mm |
| Interface | HDMI, USB for touch |
| Brightness Adjust | Auto adjustment with light sensor |
| Cooling | 2*Auto cooling fans |
| Power Supply | Input: AC 100~220V, 50~60Hz |
| Power Consumption | Max: 125W |
| Installation Method | Side mounting |
| Temperature | Operating: -20℃ to 60℃, Storage: -20℃ to 70℃ |
| Operation Altitude | <3000m |
| MTBF | 50,000hours |
| Agency Approvals | FCC, CE |
| Warranty | 1 year |
