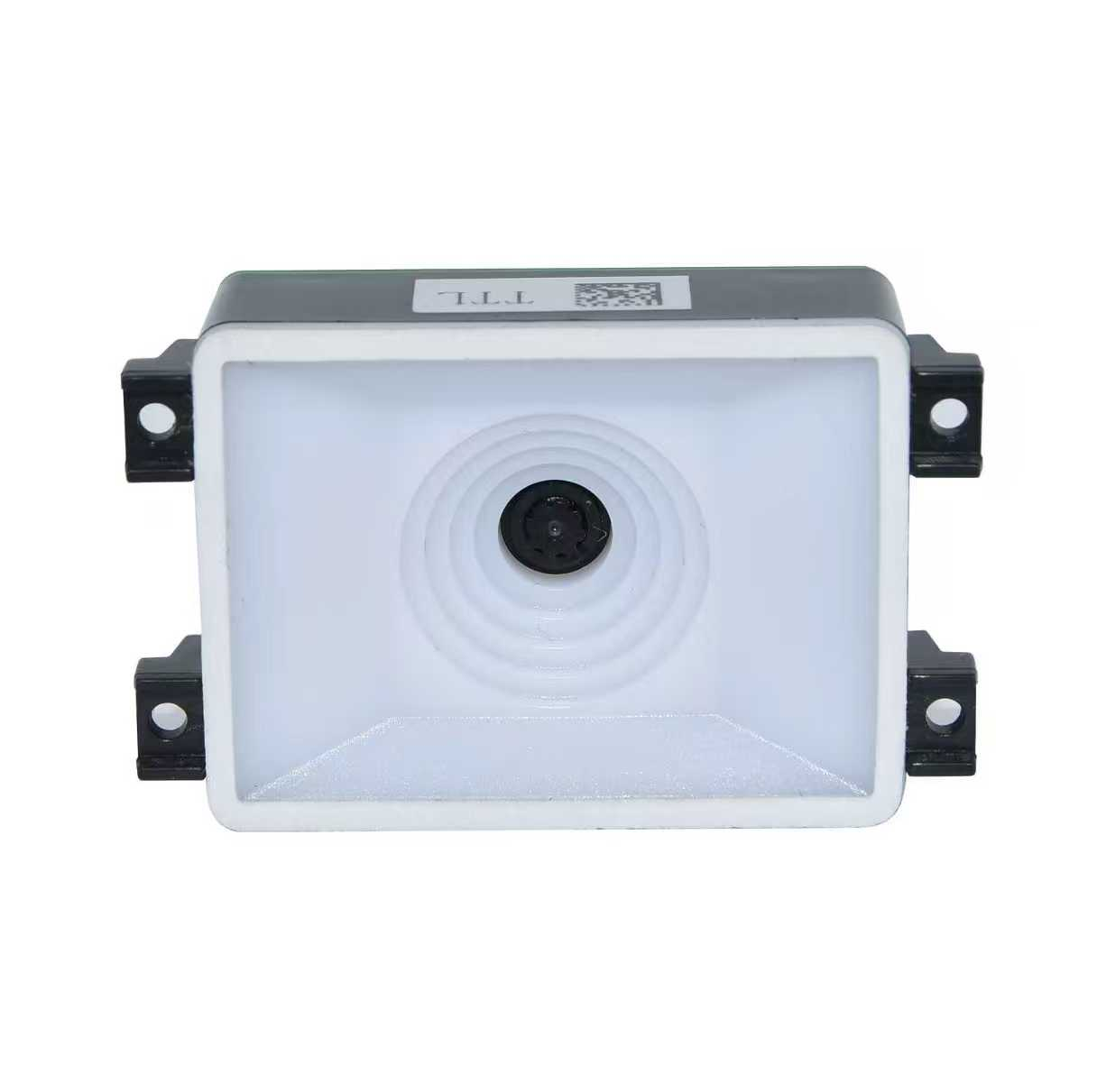

XZG004S
XZG004S is a compact embedded QR code and barcode scanning module specifically designed for self-service terminal equipment, making it an ideal choice for applications such as electric vehicle charging stations, vending machines, self-service ticketing kiosks, and POS systems. It notreads mobile payment codes, membership codes, and ticket codes quickly and accurately but is also specifically optimized for scanning bright screens in outdoor environments. It effectively suppresses ambient light interference, significantly reducing misread and missed-read rates. Built with a rugged design, it supports 24/7 continuous and stable operation, substantially minimizing maintenance needs. This enables your devices to become smarter and more reliable while delivering a smooth and worry-free experience for users.
Specification
| Image Sensor | CMOS |
|---|---|
| Resolution | 640*480 |
| Communication Interface | TTL232, RS232, USB(HID,CDC) |
| 2D Code Support | PDF417, QR Code, DataMatrix, etc |
| 1D Code Support | Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc |
| Reading Accuracy | 5mil |
| Illuminator | White LED |
| Field of View | 68°(H)51°(V) |
| Dimension | 53.4(mm)*33.2(mm)*15.6(mm) |
| Weight | 30g |
| Alert | Buzzer |
| Power Consumption | 0.9W |
| Power Supply | DC 3.3V to 5.5V |
| Temperature | Operating: 10°C to 50°C,Storage: -40°C to 60°C |
